4K Aluminum LED pergola lighting
Light every beam, one zone at a time.
The 4K LED System: color-changing LED strips set into aluminum beam light tracks, run by remote on 24-volt low voltage.
Overview
About the Lighting
The 4K LED System lights a structure from its beams. LED strips sit in 4K Aluminum beam light tracks behind a diffuser lens, which spreads the light evenly and adds to the modern look.
Each strip combines white, red, green and blue, with four separate hue changes from the handheld remote. Add controllers and every strip becomes its own zone, switched and colored on its own.
A power supply converts 110V to 24-volt low voltage, and the strips, cables and controllers connect plug-and-play, which cuts installation time.
Key features
What sets it apart
01
Four colors, one strip
Integrated white, red, green and blue, with four separate hue changes from the remote.
02
Independent zones
Controllers on separate frequencies run separate strips in the same structure, so each area gets its own light.
03
40 ft remote range
The handheld remote works up to 40 ft from the control box.
04
24-volt low voltage
A power supply steps 110V down to 24-volt low voltage for the whole system.
05
Beam light tracks
Aluminum tracks with a diffuser lens hold the strips inside the beam, in the five standard colors.
06
Plug-and-play
Strips, extension cables and Y cords plug together, reducing installation time.
Gallery
Lighting projects
4K Aluminum LED lighting on covered patios, louvered roofs and outdoor kitchens. Select a photo to enlarge it.

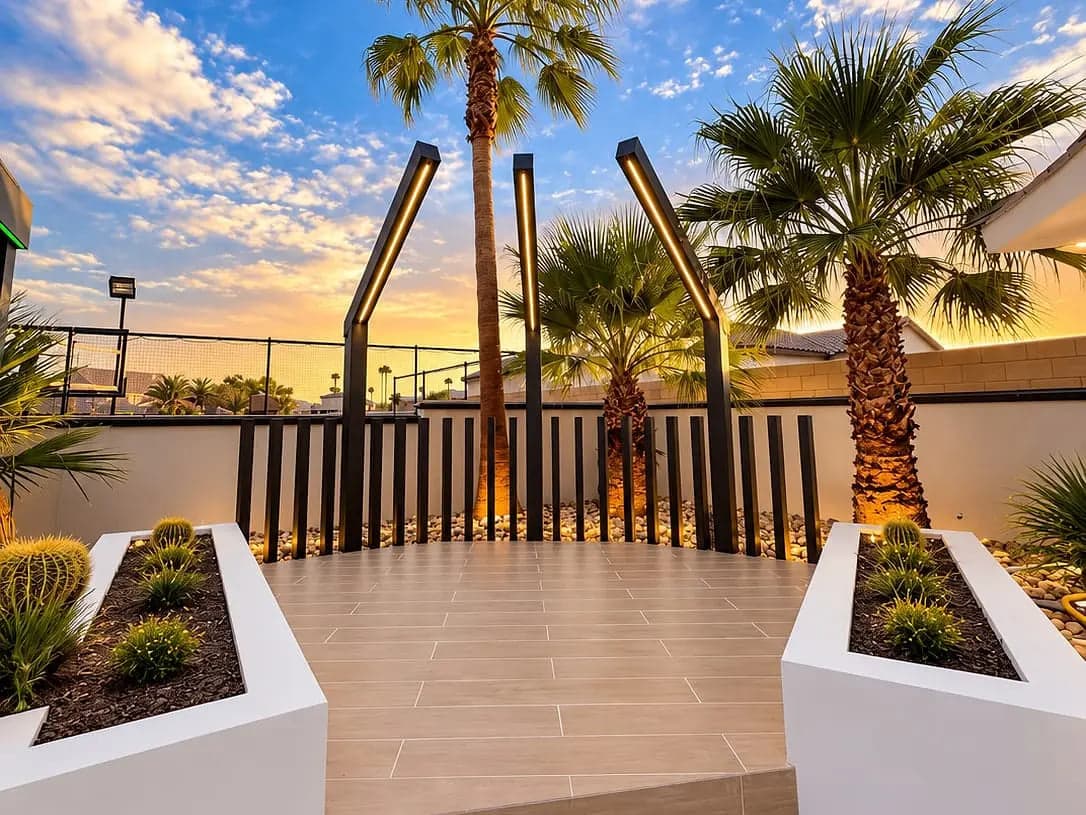

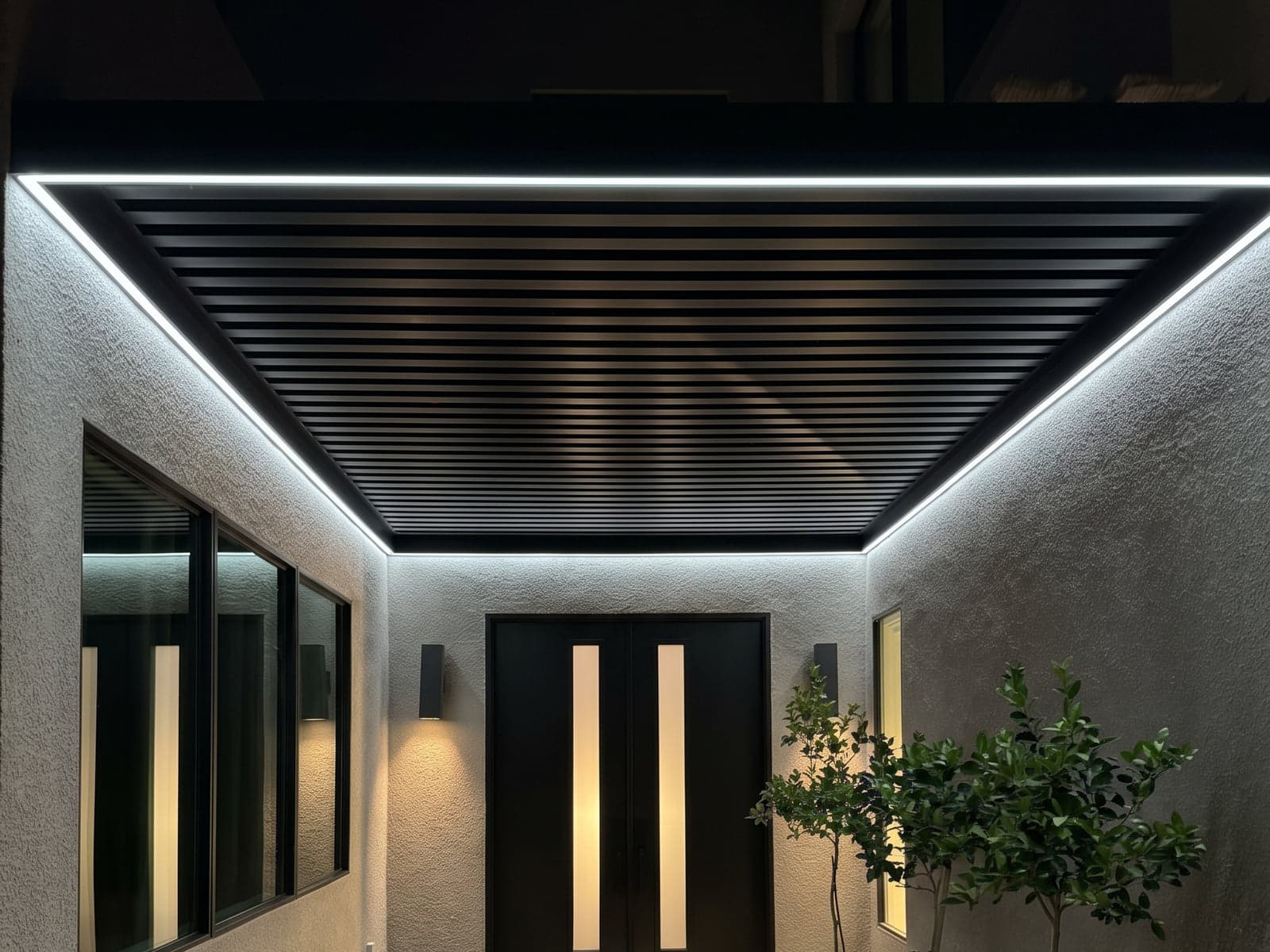

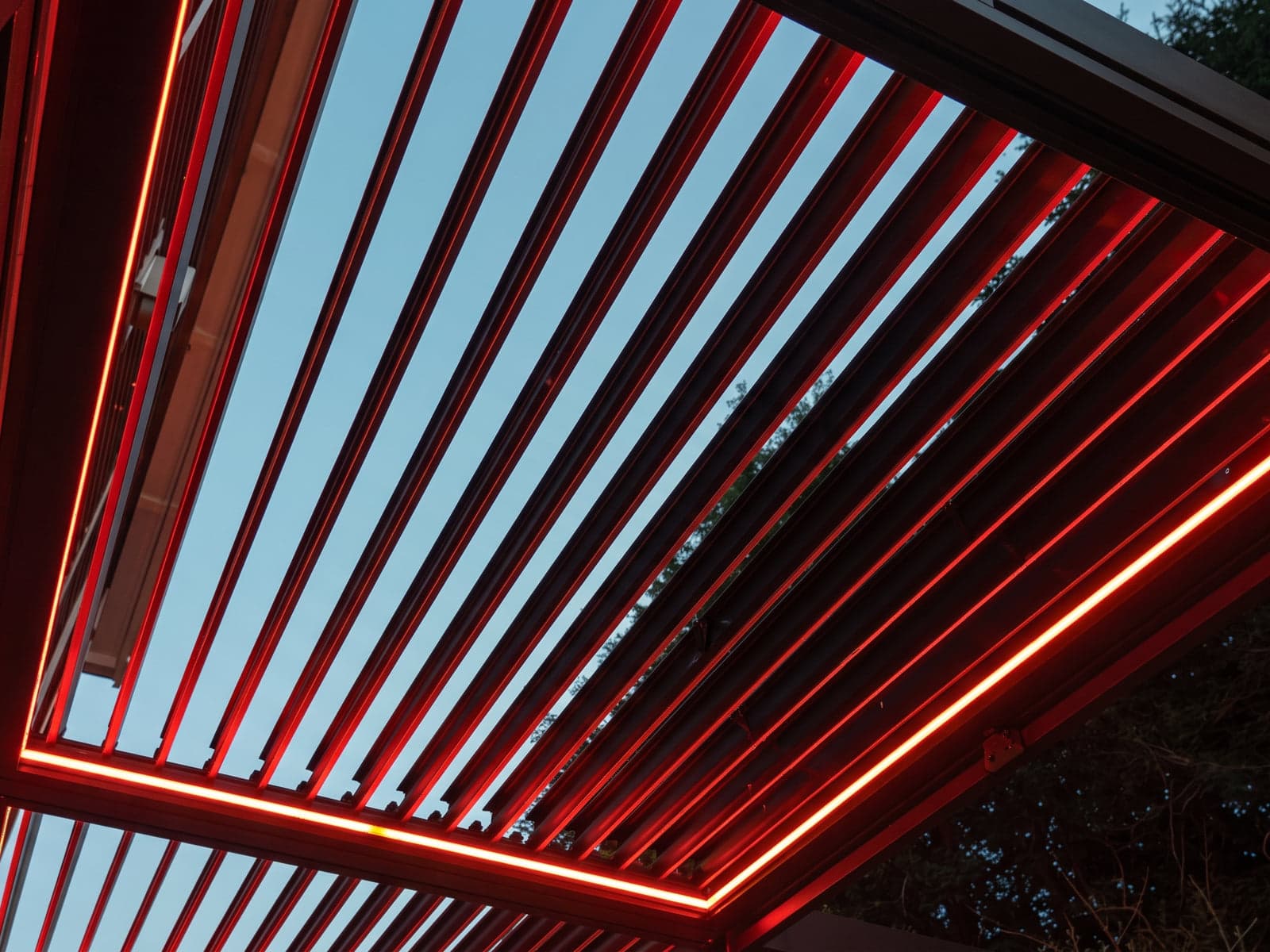

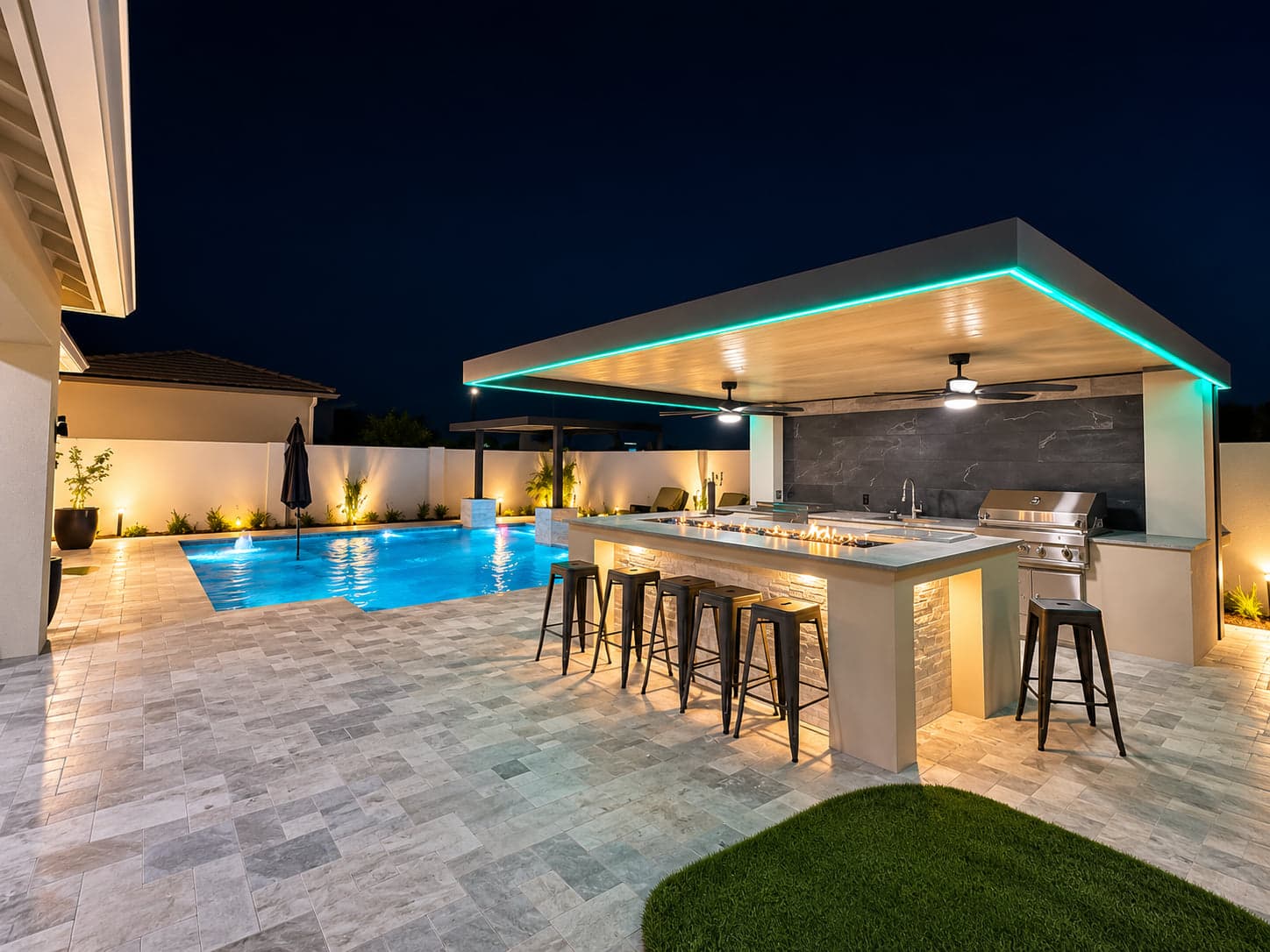

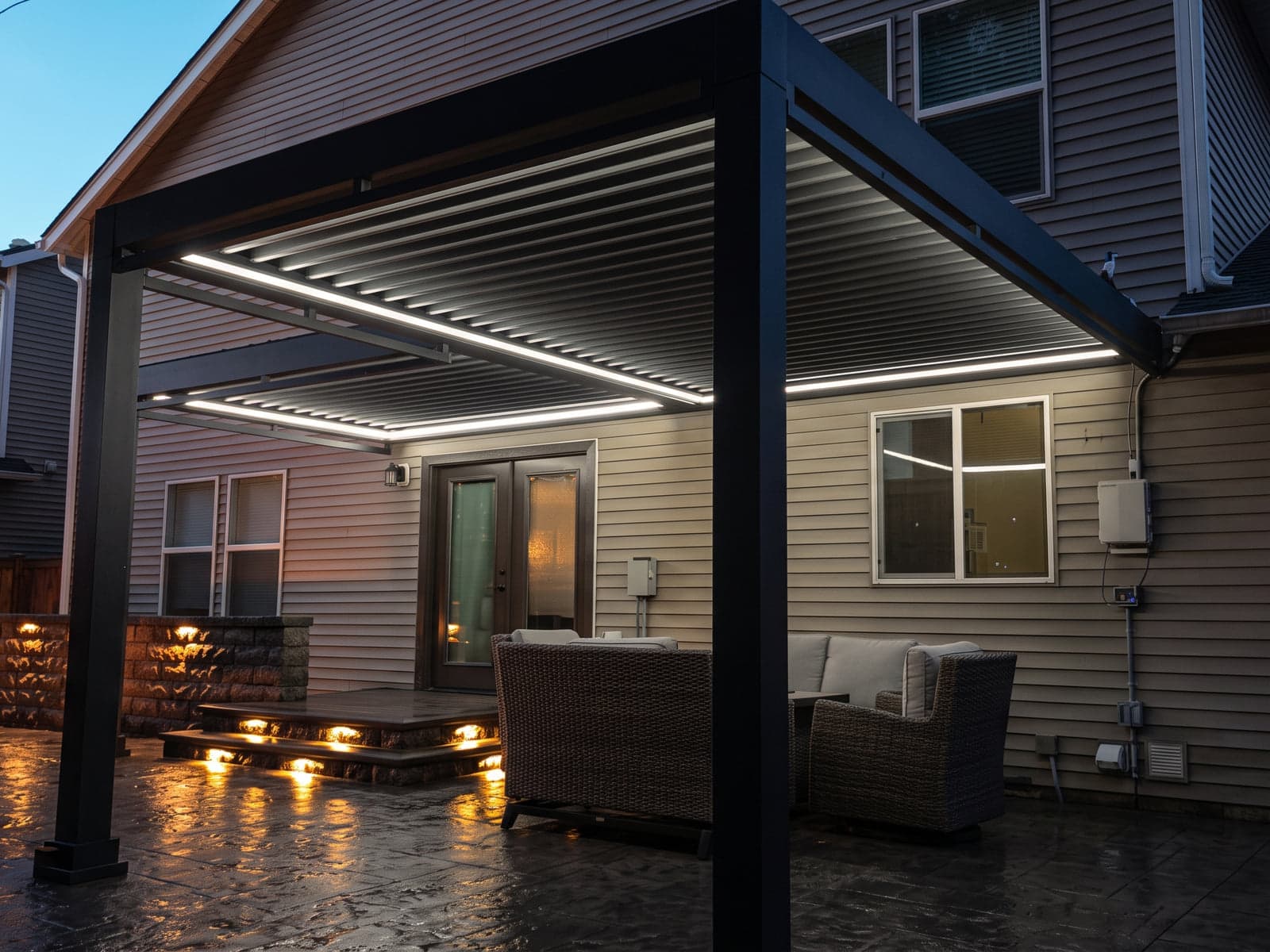

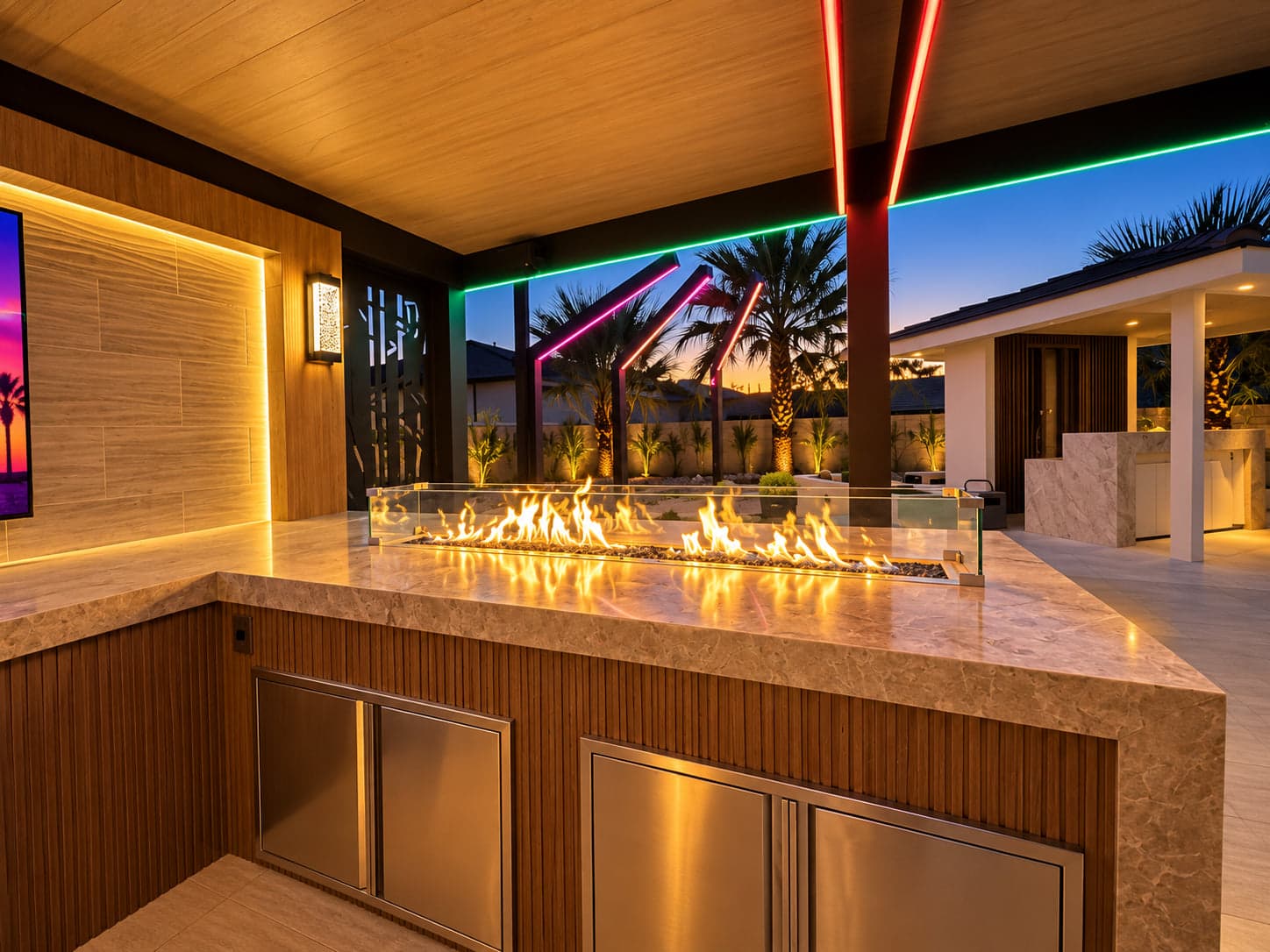

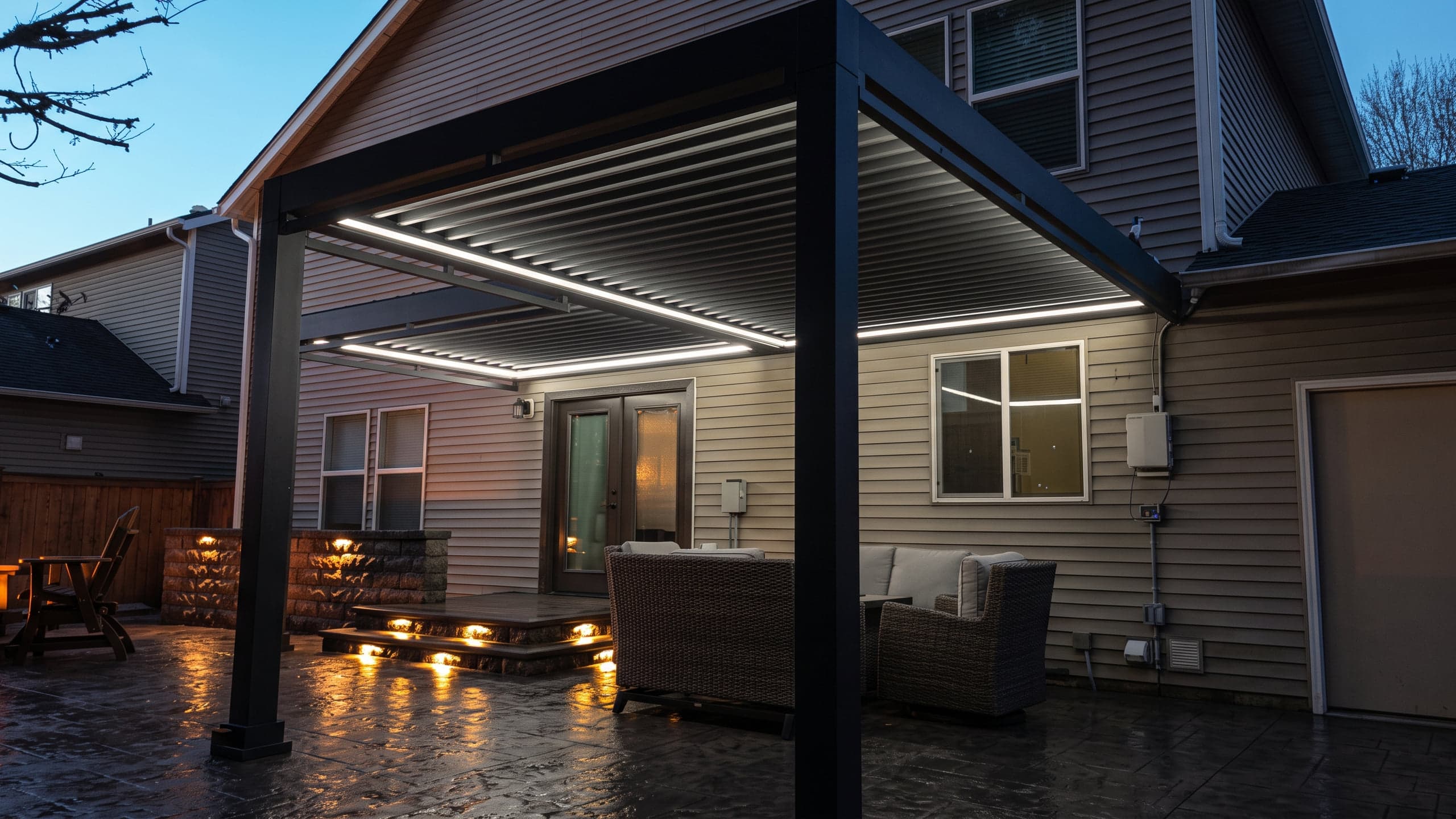

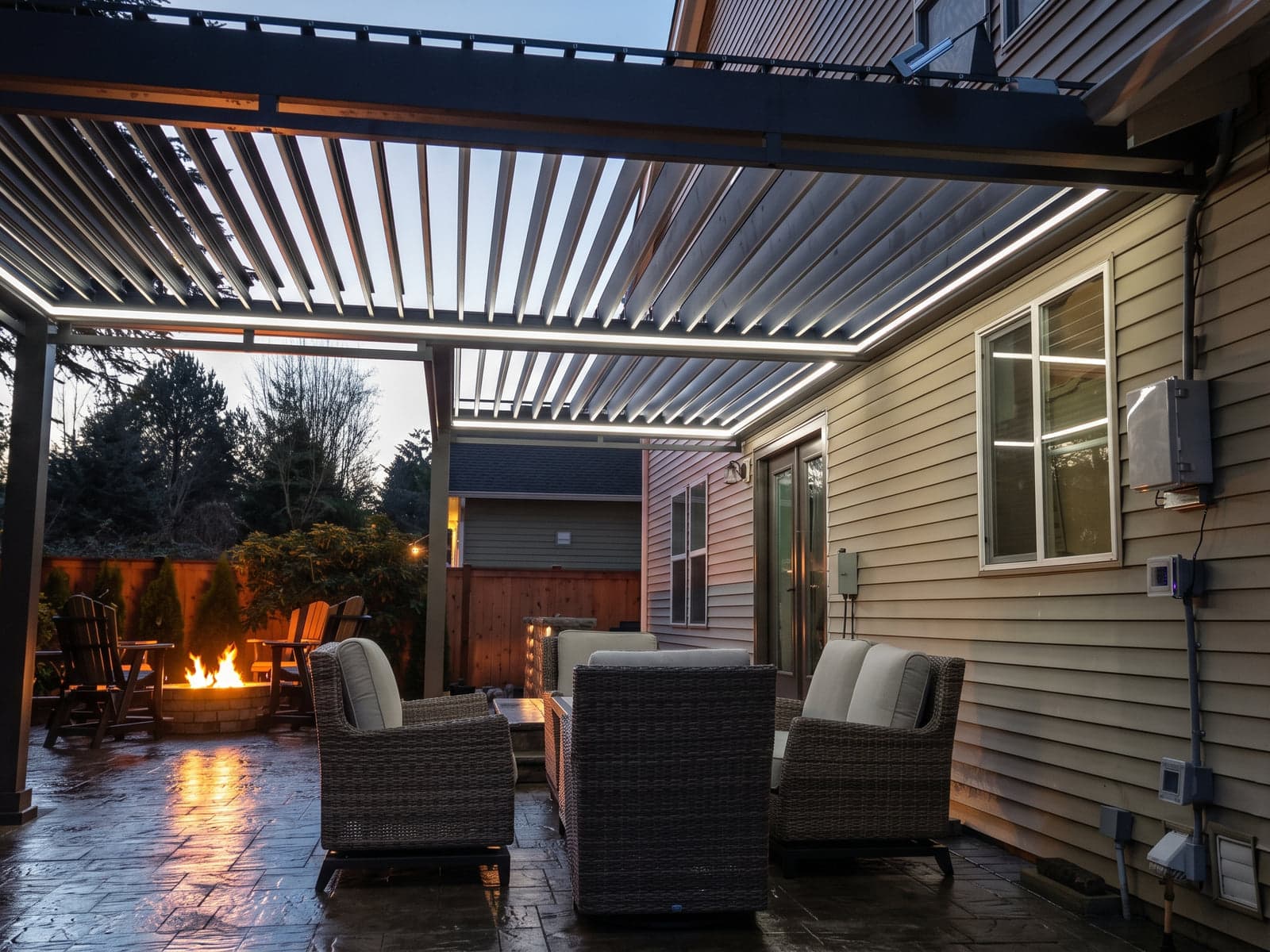

01. LED strip lighting along the beams of a covered outdoor kitchen and bar, glowing green and red at night. 02. White LED strip lighting along the edges of a louvered roof over a patio lounge. 03. LED strip lighting along the edge of a covered outdoor kitchen and bar beside a pool at night. 04. LED strip lighting along the beams of a covered fire table area at dusk. 05. Red LED strip lighting along a louvered roof, seen from below. 06. Blue LED strip lighting along a covered patio behind a fire pit. 07. Architectural feature of 6″ posts, with beam light tracks and LED strips attached underneath, at sunset. 08. White LED strip lighting around a slatted roof over a home's entry walkway at night. 09. White LED strip lighting along the edges of a louvered roof over a patio at dusk.
Specifications
Specs and options
| Power | |
|---|---|
| Voltage | 24-volt low voltage |
| Power supplies | 100W up to 40 ft; 200W up to 70 ft; 300W up to 135 ft; 500W up to 170 ft+ |
| Supply box | LED-Box; LED-Box XL for supplies over 300W |
| Connection | 6 ft grounded cord; 110V pigtail or grounded plug |
| Strips | |
| Type | COB, RGBW, 896 LEDs per meter, 180° beam angle, 12 mm wide, 20 W per meter |
| Lengths | 16′, 20′, 24′, 33′, 40′; a single or combined run can’t exceed 40 ft |
| Mounting | 3M adhesive tape inside the beam light track |
| Weather | Weather resistant to excessive moisture; not waterproof |
| Certification | ETL Intertek 5021142, CE, RoHS |
| Control | |
| Remote | Handheld, up to 40 ft from the control box |
| Zones | Multiple controllers on separate frequencies, one zone per controller |
| Colors | White, red, green and blue; four separate hue changes |
| Accessories | |
| Extension cables | 3′, 10′, 16′, 20′, 24′, 33′, 40′, male to female |
| Y cord | Splits one 24V cord into two |
| Cable mounts | Zip ties and square adhesive mounts, packs of 100 |
| Finish | |
| Beam light tracks | Black, Espresso, Adobe Tan, Apollo Grey, Quartz White |
| Warranty | |
| Coverage | LED light strips: a limited 1-year warranty from installation against defects in materials and workmanship, covering replacement materials only (no labor, installation or removal costs). See the warranty terms. |
Colors and finishes
Beam light track colors
Black
Espresso
Adobe Tan
Apollo Grey
Quartz White
Engineering
Low-voltage power
A power supply converts 110V to 24-volt low voltage. Size it to the run: 100W powers up to 40 ft of strip, 200W up to 70 ft, 300W up to 135 ft and 500W up to 170 ft or more. Supplies over 300W use the larger LED-Box XL.
