Architectural aluminum features

Name: 4K Aluminum Architectural Features
Brand: 4K Aluminum

Designs that brick and wood can’t deliver.

Water features, eyebrows, privacy walls, TV walls and yard art, built from the same extruded aluminum, lattice and Soleil™ panels as 4K Aluminum structures.

Find a Contractor

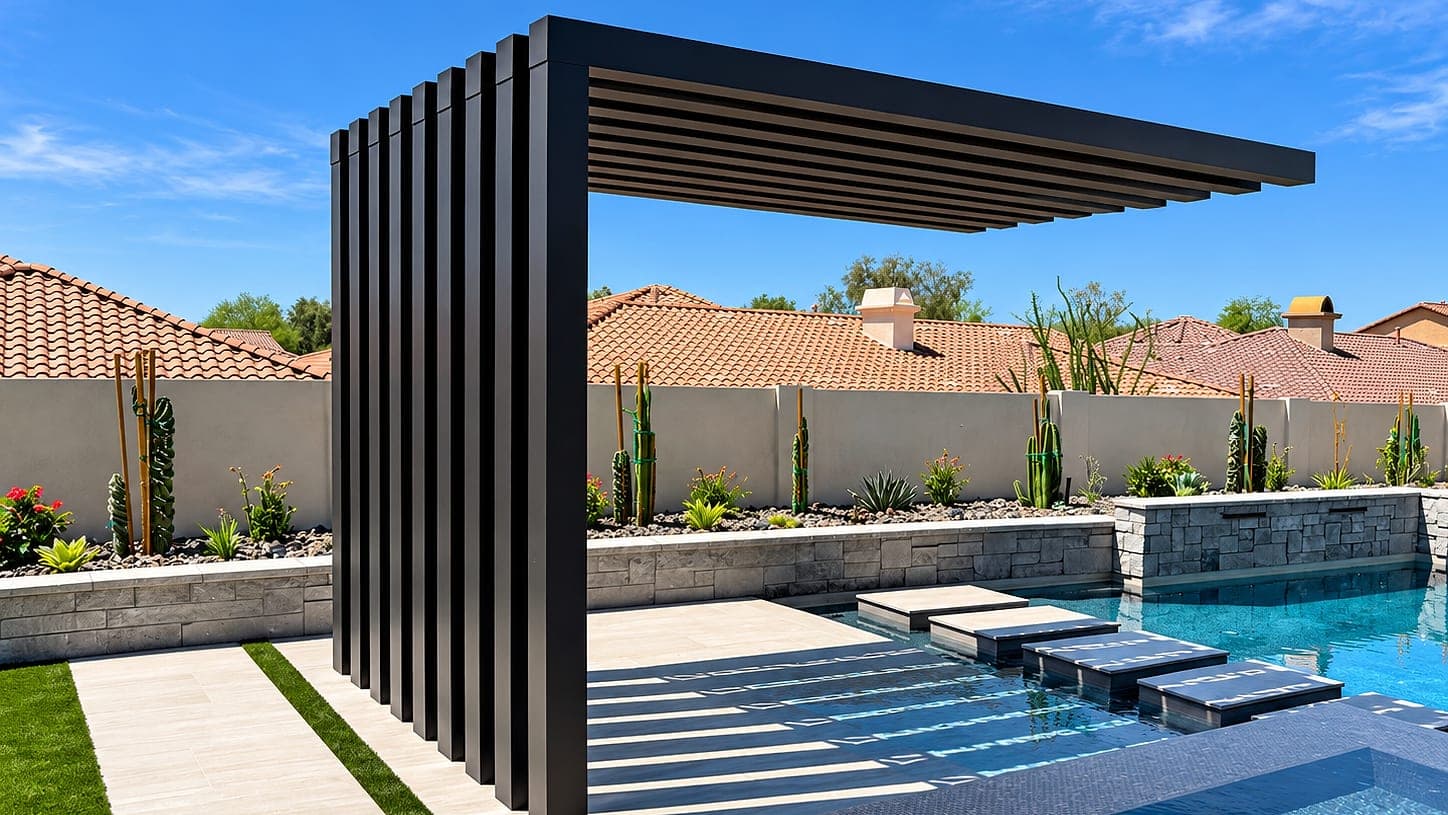

Freestanding aluminum slat structure beside a pool, with a vertical slat wall and an open slatted roof.

Overview

About the Architectural Features

4K Aluminum brings durability, looks and versatility to architectural features: over-the-pool water features, yard art, unique structural designs, TV walls and more.

Features are built from 4K Aluminum’s standard materials: extruded 6061-T6 posts and beams and 6063-T6 lattice, powder coated to AAMA 2604. The aluminum is solid yet lightweight, corrosion resistant, endlessly recyclable and formable into many designs. Posts, beams, lattice tubes and laser-cut Soleil™ panels add both function and character.

Eyebrows and awnings add character to a building while protecting against rain, snow, wind and UV rays, and 4K Aluminum stainless steel awning arms support architectural awnings.

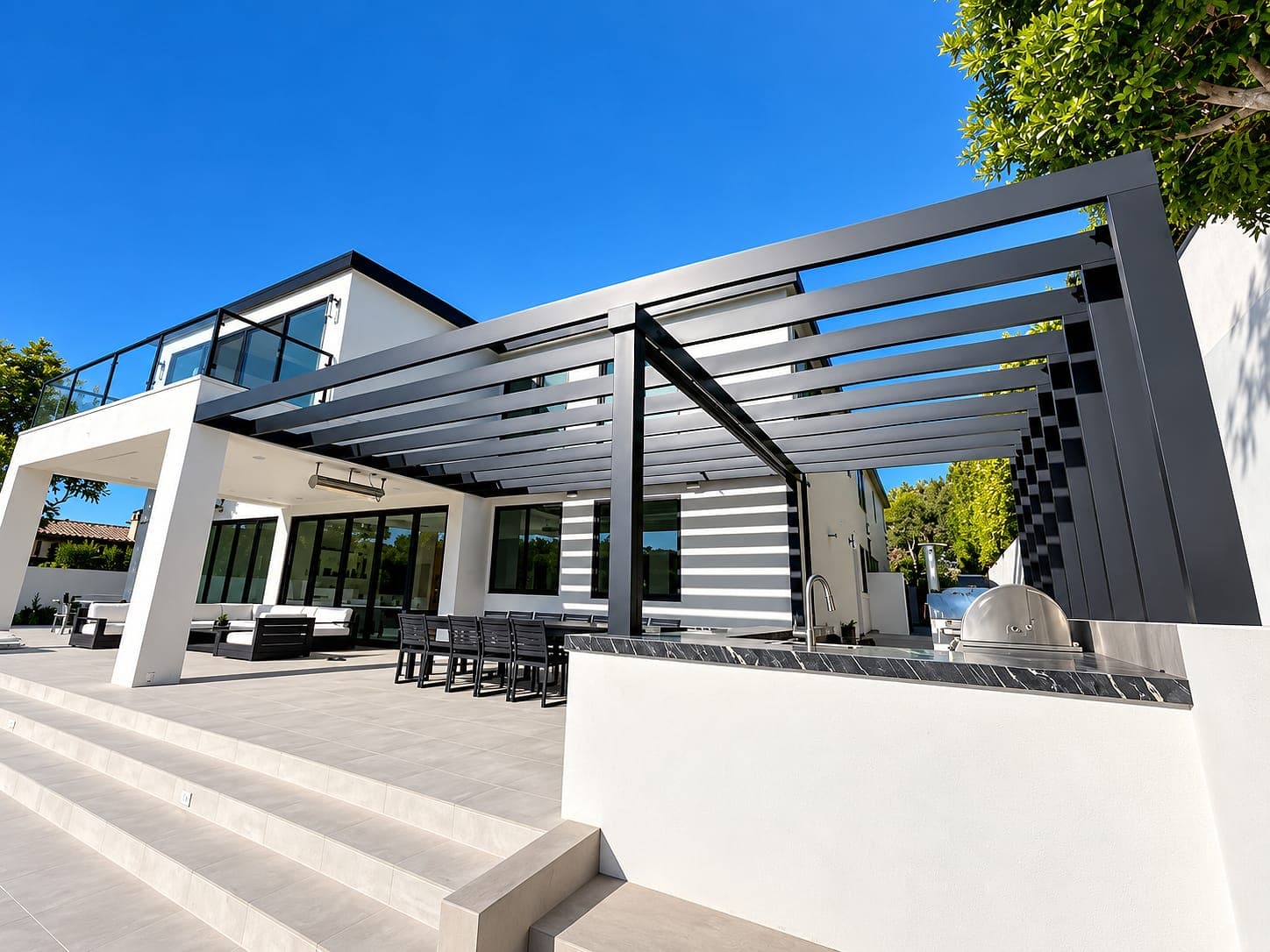

Aluminum slat trellis over an outdoor kitchen and dining terrace of a modern home.

Key features

What sets it apart

01
Over-the-pool water features
Aluminum frames that carry a water feature out over the pool.
02
Eyebrows and awnings
A distinctive element on any facade, with protection from rain, snow, wind and UV rays.
03
Privacy and TV walls
Screens and feature walls built from 4K Aluminum posts, beams and lattice, with Soleil™ panel accents.
04
Endlessly recyclable
Solid yet lightweight aluminum that resists corrosion and can be recycled again and again.
05
4K Aluminum standard materials
Extruded 6061-T6 posts and beams and 6063-T6 lattice, powder coated to AAMA 2604.
06
Awning arms
Stainless steel 304 arms rated up to 4,200 lbs, in 24″ to 60″ lengths, for architectural awnings.

Gallery

Architectural Features projects

Slat structures, trellises, eyebrows and privacy walls. Select a photo to enlarge it.

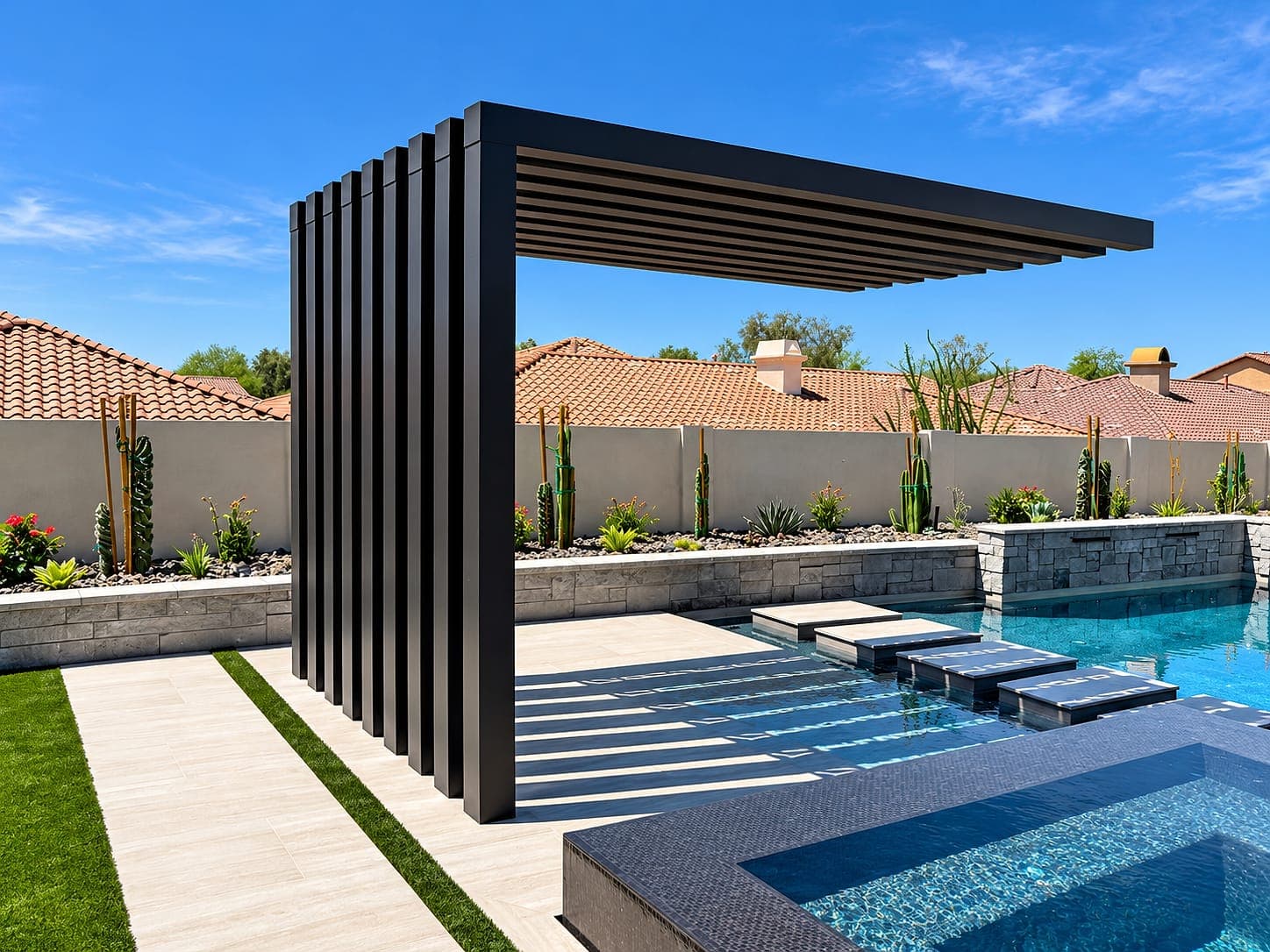

01. A freestanding aluminum slat structure beside a pool, with vertical slats forming a wall and horizontal slats overhead.

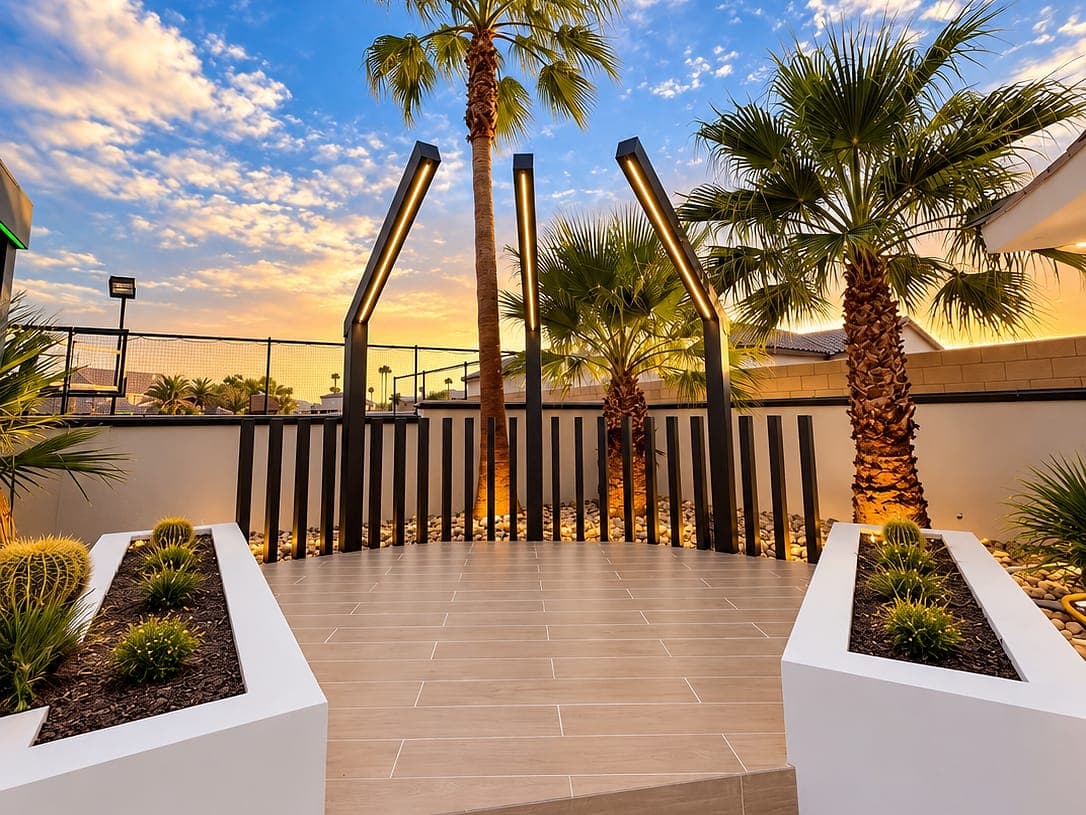

02. An architectural feature of 6″ posts, with beam light tracks and LED strips attached underneath, at sunset.
03. A row of tall aluminum slats framing a lounge bench at the edge of a pool.
04. An overhead aluminum slat trellis over an outdoor kitchen and dining terrace.

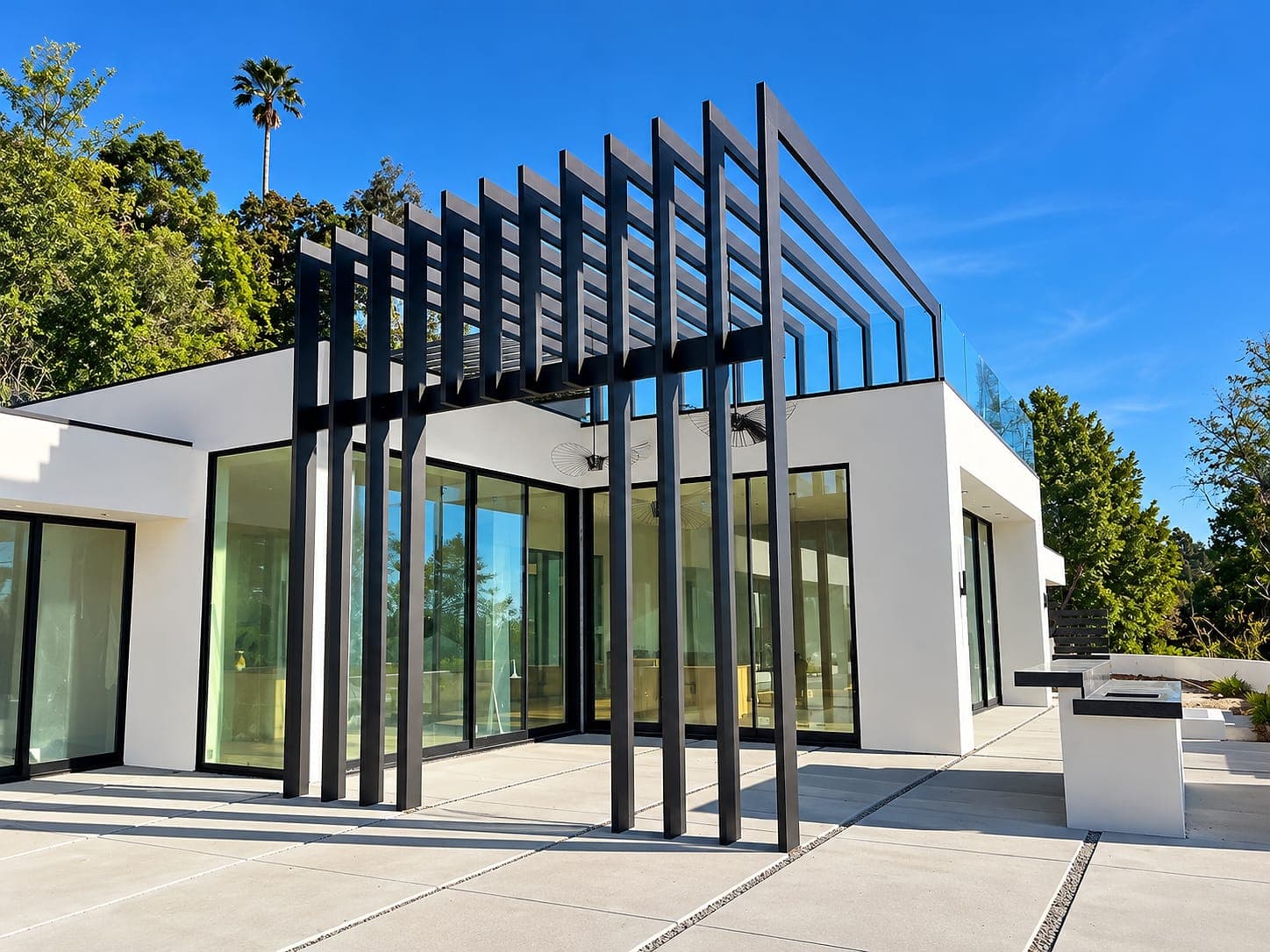

05. Tall aluminum slat frames rising along the glass front of a modern home.

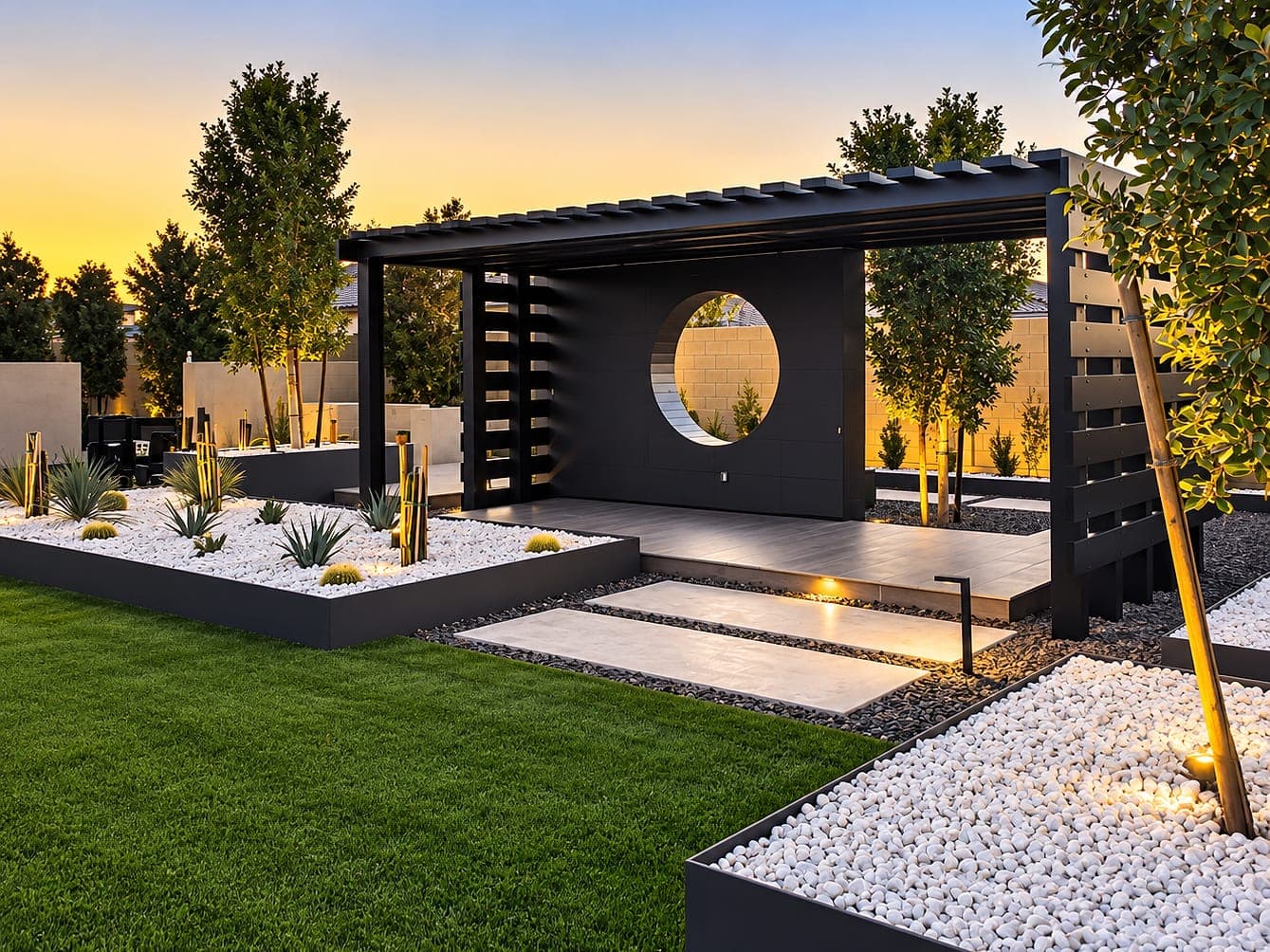

06. An aluminum shade structure with a slatted roof and a wall with a round cutout, shown at dusk.

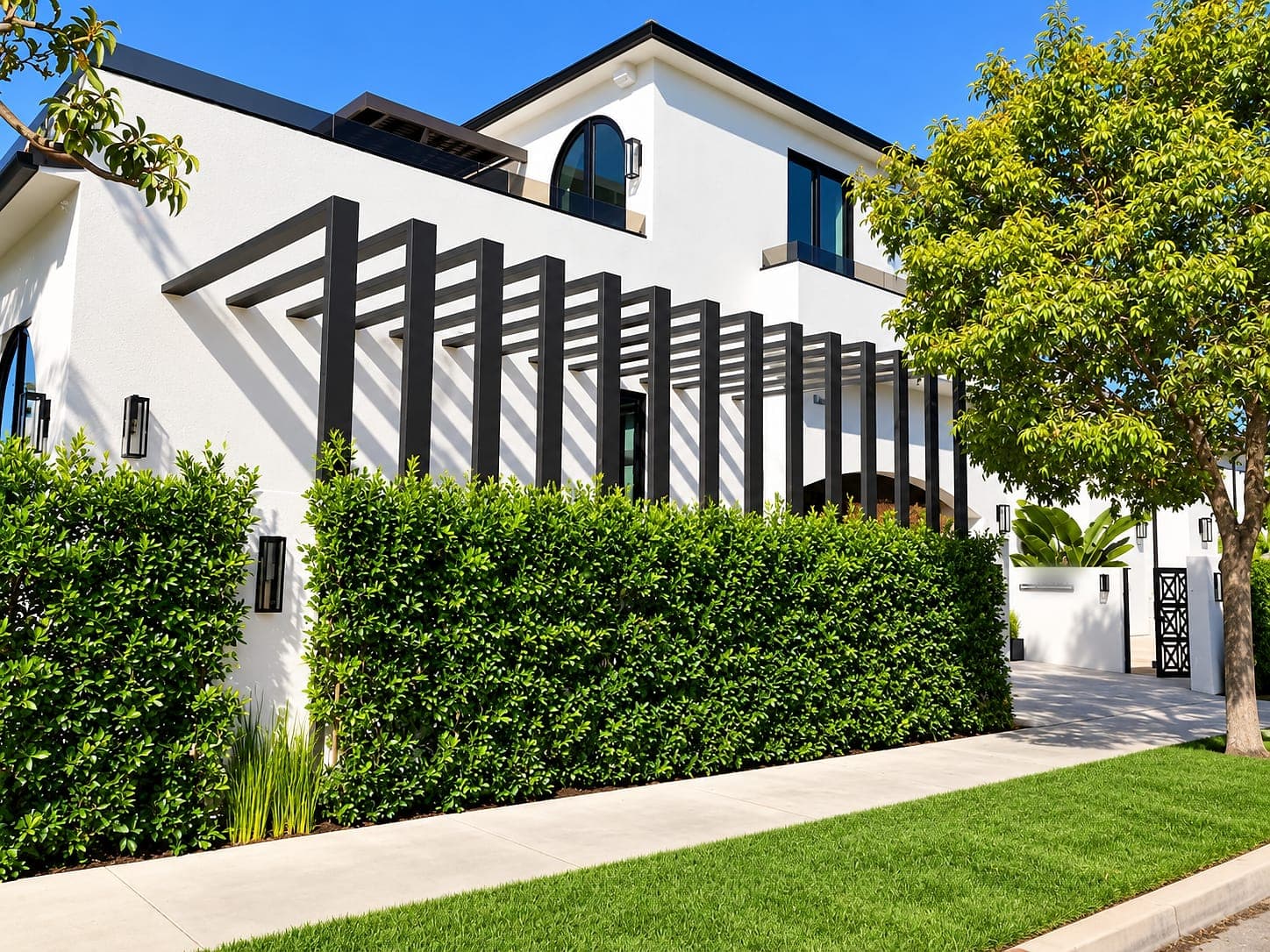

07. A slatted aluminum trellis across the front of a modern home.

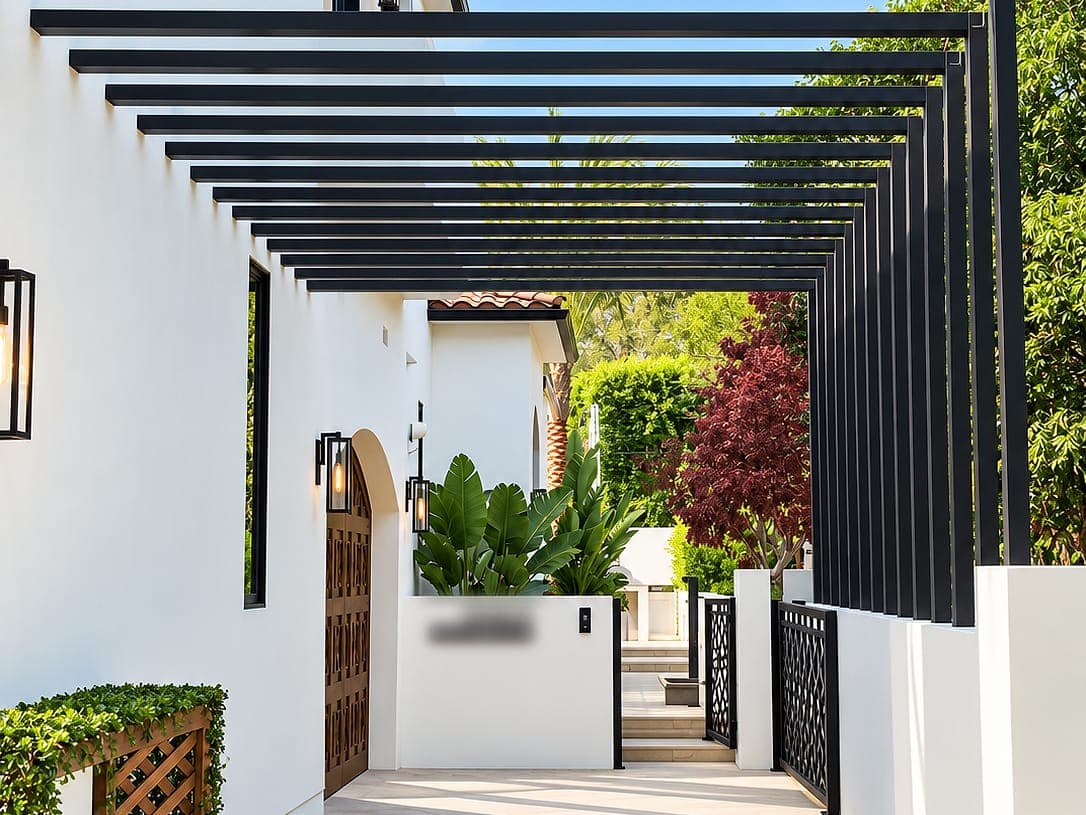

08. An aluminum slat trellis over a home's entry walkway.

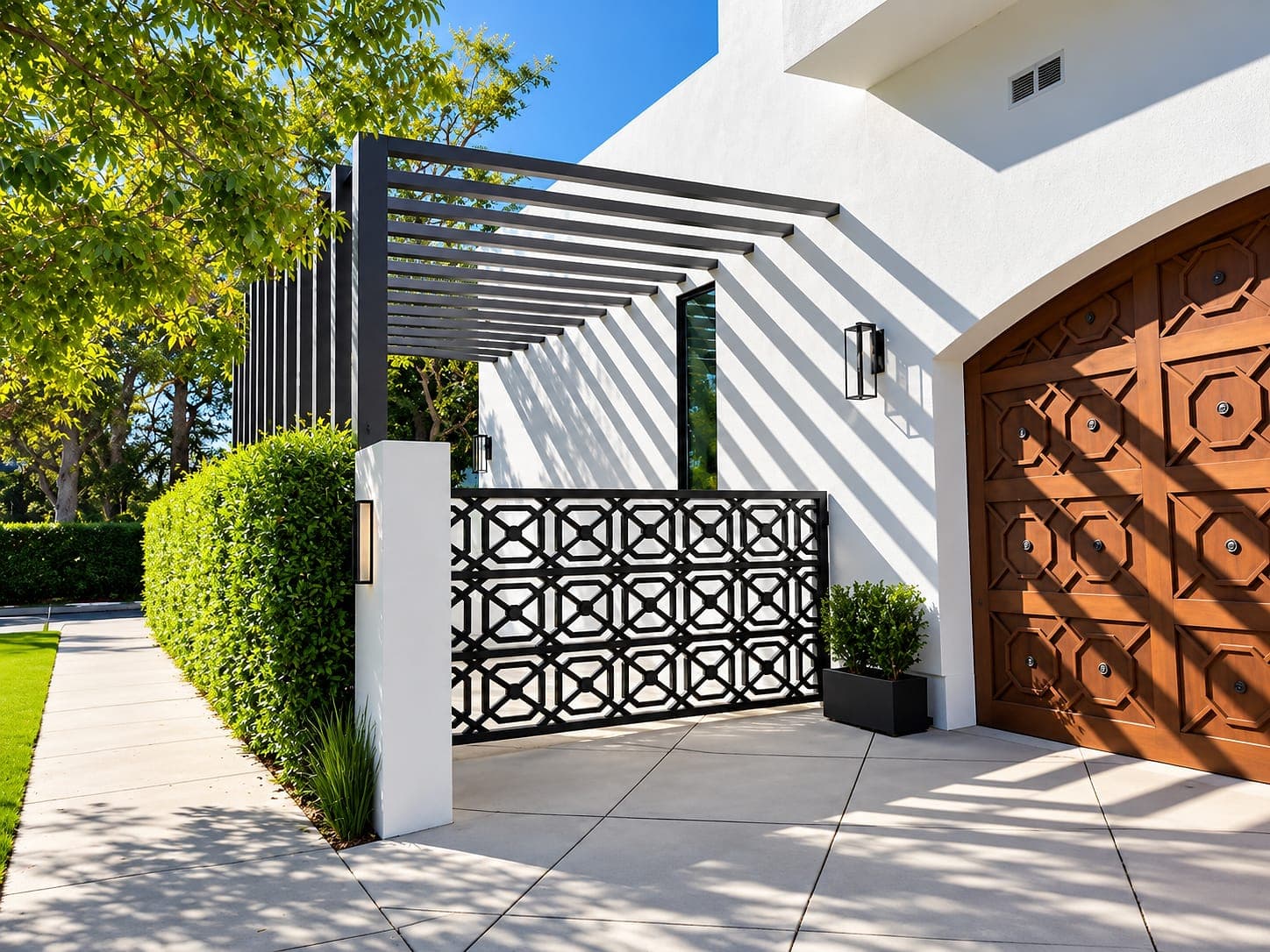

09. An aluminum slat trellis at a home's side entry.

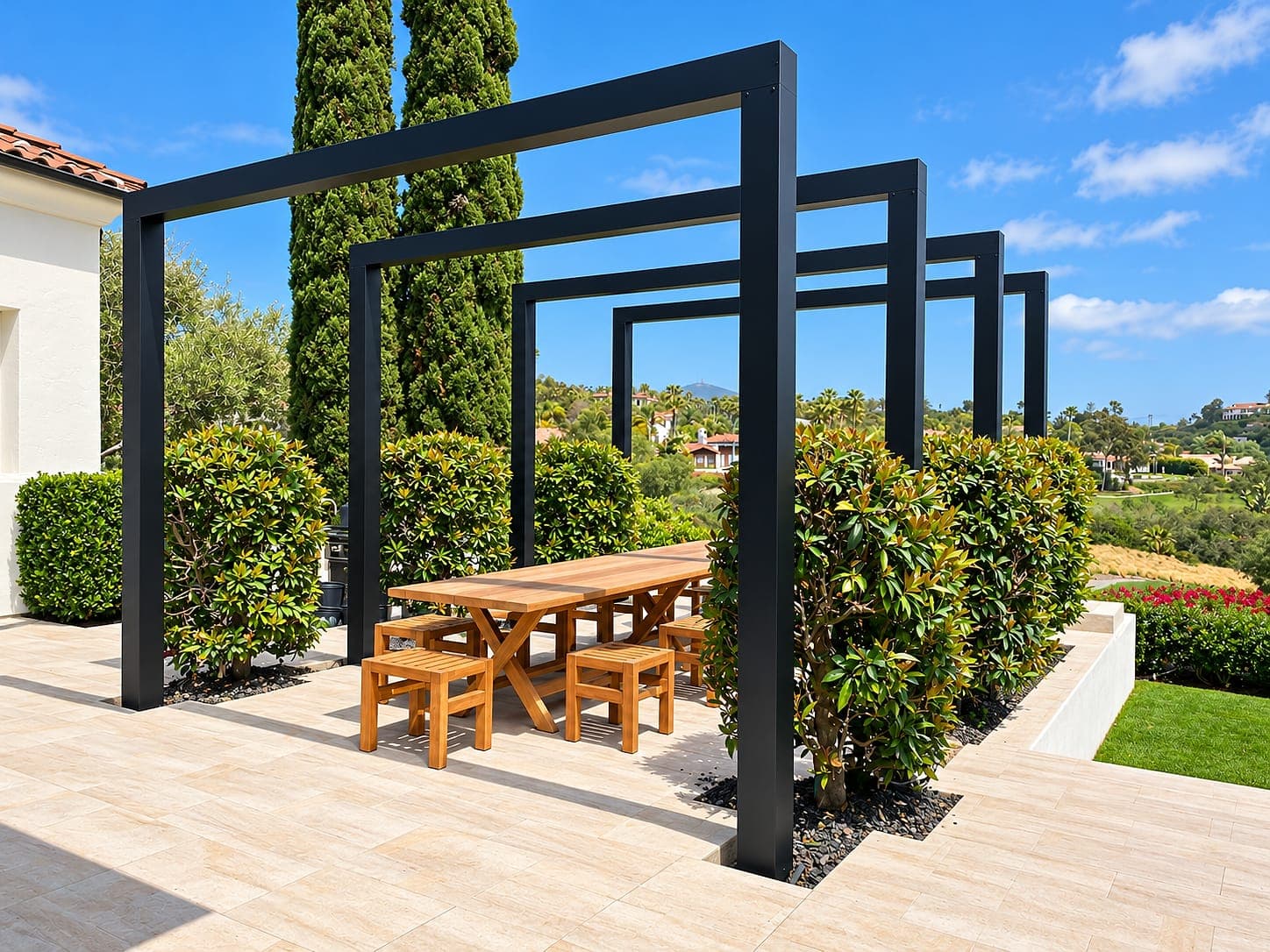

10. A series of aluminum portal frames over an outdoor dining area.

Specifications

Specs and options

Architectural Features specifications
Architectural features
Types	Over-the-pool water features, yard art, unique structural designs, TV walls, eyebrows and awnings, privacy walls, trellis
Materials	Extruded 6061-T6 posts and beams, 6063-T6 lattice tubes, and Soleil™ panels
Properties	Solid yet lightweight, corrosion resistant, endlessly recyclable
Sizes	Designed for each project
Awning arms
Lengths	24″, 36″, 48″, 60″
Rod diameter	5/8″ and 3/4″
Adjustment	±1.25″–1.5″
Load capacity	Up to 4,200 lbs (factor of safety 4.0)
Material	Stainless steel 304, passivated, with AAMA 2604-compliant powder coat
Assembly	Rod, turnbuckle, clevis or eye ends, pins, washers, spacers, lock nuts; optional base plates and adapters
Colors	Espresso, Black
Maintenance	Field tensioning with standard tools; lock-out hardware included; annual inspection recommended
Finish
Standard colors	Black, Espresso, Adobe Tan, Apollo Grey, Quartz White
Powder coat	AAMA 2604
Wood sublimation	Warm Oak, Sandalwood, on 1″ × 4″ and 1″ × 6″ lattice only
Performance
Fire	ASTM certified as Class A
Warranty
Coverage	20 years against material defects; 20 years on the powder coat in 4K Aluminum standard colors; 10 years on wood sublimation finishes; 5 years on the finish within 5 miles of saltwater. Awning arms: 20 years. Custom colors are not covered by the finish warranty. Exceptions apply; see the warranty terms.

Colors and finishes

Standard colors

Black
Espresso
Adobe Tan
Apollo Grey
Quartz White

Wood finishes

Wood sublimation, on 1″ × 4″ and 1″ × 6″ lattice only

Warm Oak
Sandalwood

Engineering

Engineered for your site

Every 4K Aluminum structure is engineered for where it’s built. We recommend site-specific engineering for every project, from our licensed partners, McPherson Engineering and Ammtec Consultants, so the design meets local wind and snow load requirements and building codes.

Our engineering partners

FAQ

Architectural Features questions

All questions

What counts as an architectural feature?

Anything beyond a standard structure: over-the-pool water features, yard art, unique structural designs, TV walls, privacy walls, trellis, eyebrows and awnings. They’re built from 4K Aluminum posts, beams, lattice tubes and Soleil™ panels.

What are 4K Aluminum awning arms rated for?

Up to 4,200 lbs, with a factor of safety of 4.0. They come as complete stainless steel 304 assemblies in 24″, 36″, 48″ and 60″ lengths, adjust in the field with standard tools, and need only an annual inspection.

What colors are available?

Architectural features come in the five standard colors (Black, Espresso, Adobe Tan, Apollo Grey and Quartz White), with Warm Oak and Sandalwood wood finishes on 1″ × 4″ and 1″ × 6″ lattice. Awning arms come in Espresso and Black.

What are architectural features made of?

4K Aluminum’s standard materials: extruded 6061-T6 posts and beams and 6063-T6 lattice, powder coated to AAMA 2604, with laser-cut Soleil™ panels where the design calls for them. Each feature is designed for its project.

What does the warranty cover?

20 years against material defects; 20 years on the powder coat in 4K Aluminum standard colors; 10 years on wood sublimation finishes. Awning arms are warranted for 20 years. Custom colors are not covered, and exceptions apply; see the warranty terms.
